1. PLC(Programmable Login Controller) operating system and human-computer interface touching screen are adopted.
2. Servor motor control system and fixed length photoelectricity control are employed.
3. Main motor equipped with inverter.
4. Round pressing round heat sealing mechanism.
5. The hob cuts the bag.
6. Constant temperature heating.
7. Slatted tensioning shaft coil feeding.
The main technical parameters:
|
Fastest speed |
250包/分 |
|

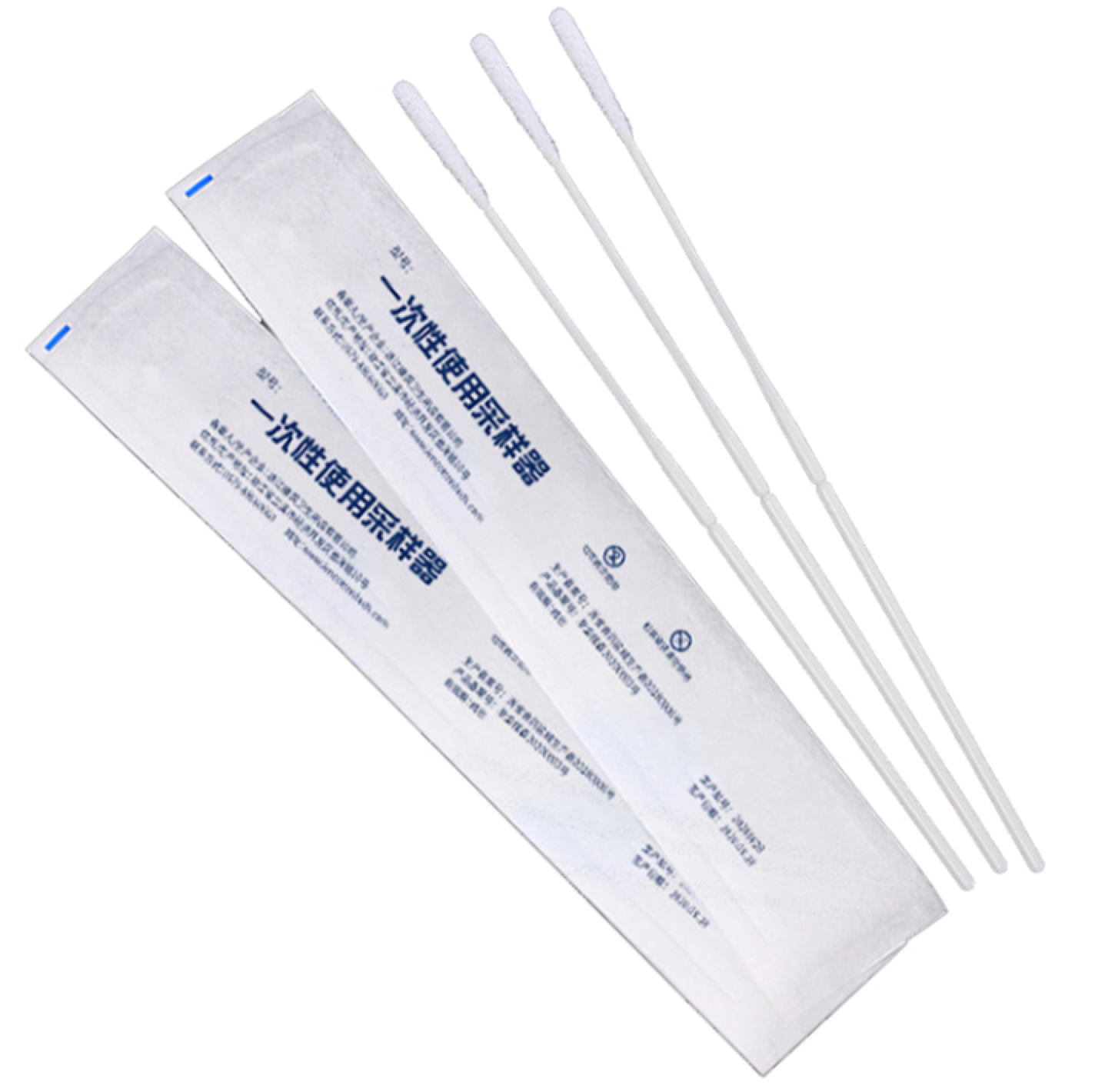

Swab specification |
150mm |
| Packaging specification |
200x40mm |
|
Coil width |
200mm |
|
Maximum diameter of upper and lowering discharge |
450mm |
|
Voltage |
220V |
| Overall dimension | 3700x870x1180mm |
| Machine weight |
约900kg |
